ASRock B660M Pro RS (90-MXBGW0-A0UAYZ)

im HardwareSchotte Preisvergleich
Es sind noch keine Bewertungen oder Testberichte vorhanden.

  • Mainboard
  • Hersteller: ASRock
  • CPU-Sockel: Sockel LGA 1700
  • Formfaktor: Micro-ATX
  • Mainboard Chipsatz: Intel B660
  • Grafikkarten Bus-System: PCI Express 4.0
  • für CPU-Generation: Core i-13000 (Raptor Lake)  •  Core i-12000 (Alder Lake)
  • passive Kühlung: Ja

Alternative Produktvorschlägefür ASRock B660M Pro RS (90-MXBGW0-A0UAYZ)

Das Produkt ASRock B660M Pro RS (90-MXBGW0-A0UAYZ) ist seit dem 16.06.2025 nicht mehr erhältlich.
Folgende Produkte besitzen ähnliche technische Eigenschaften (), weitere Alternativen findest du in der Kategorie Intel Mainboards.

ASUS Pro B660M-C D4-CSM (90MB19B0-M0EAYC)

Intel B660 - Micro-ATX - 4x DDR4-5000MHz - 4x SATA - PCIe-4.0 M.2-Slot - USB 3.0 - 7.1 Audio - 1 GBit/s LAN - PCI Express 4.0 - Sockel LGA 1700

17 Preise
ab 119,85¤

ASUS PRIME B660M-K D4

Intel B660 - Micro-ATX - 2x DDR4-5333MHz - 4x SATA - PCIe-4.0 M.2-Slot - USB 3.0 - 7.1 Audio - 1 GBit/s LAN - PCI Express 4.0 - Sockel LGA 1700

24 Preise
ab 87,16¤

ASRock H670M Pro RS (90-MXBHK0-A0UAYZ)

Intel H670 - Micro-ATX - 4x DDR4-4800MHz - 4x SATA - PCIe-4.0 M.2-Slot - USB 3.0, USB 3.1 - 7.1 Audio - 1 GBit/s LAN - 2x PCI Express 4.0 - Sockel LGA 1700

18 Preise
ab 105,68¤

ASUS PRIME B660M-A WIFI D4 (90MB1AE0-M0EAY0)

Intel B660 - Micro-ATX - 4x DDR4-5333MHz - 4x SATA - PCIe-4.0 M.2-Slot - USB 3.1 - 7.1 Audio - 1 GBit/s LAN, WLAN - 3x PCI Express 4.0 - Sockel LGA 1700

11 Preise
ab 125,16¤

ASUS PRIME B660M-A D4-CSM (90MB19K0-M1EAYC)

Intel B660 - Micro-ATX - 4x DDR4-5333MHz - 4x SATA - PCIe-4.0 M.2-Slot - USB 3.0, USB 3.1 - 7.1 Audio - 1 GBit/s LAN - 3x PCI Express 4.0 - Sockel LGA 1700

25 Preise
ab 110,49¤

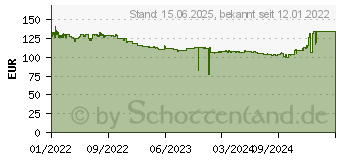

Preistrend

Preisüberwachung

Lass Dich von uns benachrichtigen, wenn das Produkt unter den von Dir angegebenen Preis fällt.

Preis
E-Mail(Datenschutz)

Produktdatenblatt für Mainboard ASRock B660M Pro RS (90-MXBGW0-A0UAYZ)

zu den alternativen Produktvorschlägen
Hersteller ASRock
Artikelnummer des Herstellers 90-MXBGW0-A0UAYZ
Markteinführung 12.01.2022
Eigenschaften
CPU-Sockel Sockel LGA 1700
Mainboard Chipsatz Intel B660
für CPU-Generation Core i-13000 (Raptor Lake)  •  Core i-12000 (Alder Lake)
Formfaktor Micro-ATX
passive Kühlung Ja
Speicher
Speicherbänke 4
Arbeitsspeicher-Typ DDR4-4800MHz (PC4-38400)
Speichererweiterung (maximal) 128 GB
Erweiterungssteckplätze
Grafikkarten Bus-System PCI Express 4.0
PCI Express (x16) Steckplätze 2x (x16 / x4 mode)
PCI Express (x1) Steckplätze 1
Multi-GPU Technik AMD CrossFireX / XDMA CrossFire
Massenspeicher
SATA-Anschlüsse 4x SATA-III 6Gb/s
M.2 Anschlüsse 2x
M.2-/U.2-Ports 1x M.2 Key-M PCIe-4.0 x4  •  1x M.2 Key-M PCIe-3.0 x4/SATA
Schnittstellen-Protokoll NVMe (NVMHCI)
Netzwerk
Netzwerk Schnittstellen (RJ-45) 1x
Netzwerk-Übertragungsrate 1 GBit/s
Netzwerk-Chipsatz Intel I219V
WLAN-Standards -
Sound
Audiokanäle 7.1
Audio-Chipsatz Realtek ALC897
analoge Audio-Anschlüsse Line-Out 1x (Klinke)  •  Line-In 1x (Klinke)  •  Mikrofon 1x (Klinke)
digitale Audio-Anschlüsse (S/PDIF) -
externe USB-Anschlüsse
externe USB-2.0/1.1 4x
extern USB-3.0/3.1/3.2 (5 GBit/s) 4x USB 3.1 Typ-A (Gen.1)
extern USB-3.1/3.2 (10 GBit/s) -
extern USB-3.2 Gen2x2 (20 GBit/s) -
Thunderbolt-Schnittstelle nicht vorhanden
externe Video-Anschlüsse
HDMI-Ausgänge 1x HDMI 2.1
DisplayPort-Ausgänge 1x DP 1.4
interne Anschlüsse
USB Anschlüsse intern 4
intern USB-3.0/3.1 (5 GBit/s) 2
intern 3.2 (USB-C Header) 1
Stromversorgung
Mainboardanschlüsse 24-pin (ATX 2.0-Power)  •  8-polig (ATX12V/EPS12V)
CPU MOSFETs Power Stages Design 8 Phasen
weitere Ausstattung Digital-Power-Design  •  großer VRM-Kühler  •  einfacher Chipsatz-Kühler  •  M.2-Kühler  •  Steel Armor PCI-Express Slot  •  RGB-Beleuchtung
RGB- / LED-Anschlüsse 4-Pin RGB (12VGRB)
Herstellergarantie 3 Jahre
weitere Informationen

• Socket LGA1700 für Intel Core-Prozessoren der 12-Generation
- 2x PCIe-Slots:
• 1x PCIe 4.0 x16 von der CPU
• 1x PCIe 3.0 x16 (x4 Mode) vom B660 Chipsatz
- 2x M.2 Slots Key-M:
• 1x M.2 Slot Key-M (M2_1) PCIe 4.0 x4 Mode von der CPU
• 1x M.2 Slot Key-M (M2_2) PCIe 3.0 x4 & SATA Mode vom B660 Chipsatz
- Grafik-Ausgänge:
• 1x DisplayPort 1.4: unterstützt max. 8K 7680x4320 @ 60Hz
• 1x HDMI 2.1: unterstützt max. 4K 4096x2304 @ 60Hz

Produktseite beim Hersteller
