ASRock Z370M-ITX/ac

im HardwareSchotte Preisvergleich
Es sind noch keine Bewertungen oder Testberichte vorhanden.

  • Mainboard
  • Hersteller: ASRock
  • CPU-Sockel: Sockel LGA 1151-v2
  • Formfaktor: Mini-ITX
  • Mainboard Chipsatz: Intel Z370
  • extern USB-3.0/3.1/3.2 (5 GBit/s): 6x USB 3.1 Typ-A (Gen.1)
  • Grafikkarten Bus-System: PCI Express 3.0
  • PCI Express (x16) Steckplätze: 1x (x16 mode)

Alternative Produktvorschlägefür ASRock Z370M-ITX/ac

Das Produkt ASRock Z370M-ITX/ac ist seit dem 28.01.2023 nicht mehr erhältlich.
Folgende Produkte besitzen ähnliche technische Eigenschaften (), weitere Alternativen findest du in der Kategorie Intel Mainboards.

ASUS PRIME B365M-K

Intel B365 - Micro-ATX - 2x DDR4-2666MHz - 6x SATA 6Gb/s - 1x M.2-Slot - USB 3.0 - 7.1 Audio - 1 GBit/s LAN - PCI Express 3.0 - Sockel LGA 1151-v2

3 Preise
ab 139,95¤

ASRock H310CM-DVS

Intel H310 - Micro-ATX - 2x DDR4-2666MHz - 4x SATA 6Gb/s - 7.1 Audio - PCI Express 3.0 - Sockel LGA 1151-v2

20 Preise
ab 42,54¤

ASRock H610M-ITX/ac (90-MXBHL0-A0UAYZ)

Intel H610 - Mini-ITX - 2x DDR4-3200MHz - 4x SATA - PCIe-3.0 M.2-Slot - USB 3.0 - 7.1 Audio - 1 GBit/s LAN, WLAN - PCI Express 4.0 - Sockel LGA 1700

21 Preise
ab 116,90¤

Supermicro X11SCL-iF (MBD-X11SCL-IF-B)

Intel C242 - Mini-ITX - 2x DDR4-2666MHz - 4x SATA - PCIe-3.0 M.2-Slot - USB 3.1 - kein Audio - 1 GBit/s LAN - PCI Express 3.0 - Sockel LGA 1151-v2

7 Preise
ab 240,99¤

ASRock H370M-HDV

Intel H370 - Micro-ATX - 2x DDR4-2666MHz - 4x SATA - USB 3.0 - 7.1 Audio - 1 GBit/s LAN - PCI Express 3.0 - Sockel LGA 1151-v2

11 Preise
ab 59,95¤

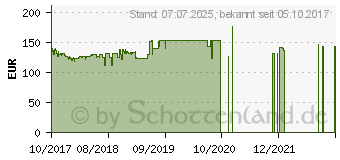

Preistrend

Preisüberwachung

Lass Dich von uns benachrichtigen, wenn das Produkt unter den von Dir angegebenen Preis fällt.

Preis
E-Mail(Datenschutz)
Newsletter

Produktdatenblatt für Mainboard ASRock Z370M-ITX/ac

zu den alternativen Produktvorschlägen
HerstellerASRock
Artikelnummer des Herstellers90-MXB620-A0UAYZ
Markteinführung 05.10.2017
Eigenschaften
CPU-Sockel Sockel LGA 1151-v2
Mainboard Chipsatz Intel Z370
für CPU-Generation Core i-9000 (Coffee Lake-R)  •  Core i-8000 (Coffee Lake-S)
Formfaktor Mini-ITX
passive Kühlung Ja
Speicher
Speicherbänke 2
Arbeitsspeicher-Typ DDR4-4000MHz (PC4-32000)
Speichererweiterung (maximal) 32 GB
Erweiterungssteckplätze
Grafikkarten Bus-System PCI Express 3.0
PCI Express (x16) Steckplätze 1x (x16 mode)
Multi-GPU Technik -
Massenspeicher
SATA-Anschlüsse 6x SATA-III 6Gb/s
M.2 Anschlüsse 1x
M.2-/U.2-Ports 1x M.2 Key-M PCIe-3.0 x4/SATA
Schnittstellen-Protokoll NVMe (NVMHCI)
Netzwerk
Netzwerk Schnittstellen (RJ-45) 2x
Netzwerk-Übertragungsrate 1 GBit/s
Netzwerk-Chipsatz Intel I219V + Intel I211AT + Intel 802.11ac WiFi Modul
WLAN-Standards WiFi 5 (IEEE 802.11ac bis 1 GBit/s)  •  WiFi 4 (IEEE 802.11n bis 300 MBit/s)  •  IEEE 802.11g (bis 54 MBit/s)  •  IEEE 802.11b (11 bis 44 MBit/s)
Bluetooth Bluetooth 4.2
Sound
Audiokanäle 7.1
Audio-Chipsatz Realtek ALC892
analoge Audio-Anschlüsse Line-Out 1x (Klinke)  •  Line-In 1x (Klinke)  •  Mikrofon 1x (Klinke)
digitale Audio-Anschlüsse (S/PDIF) -
externe USB-Anschlüsse
externe USB-2.0/1.1 2x
extern USB-3.0/3.1/3.2 (5 GBit/s) 6x USB 3.1 Typ-A (Gen.1)
extern USB-3.1/3.2 (10 GBit/s) -
extern USB-3.2 Gen2x2 (20 GBit/s) -
Thunderbolt-Schnittstelle nicht vorhanden
externe Video-Anschlüsse
HDMI-Ausgänge 2x HDMI 1.4
DisplayPort-Ausgänge 1x DP 1.2
VGA-Ausgänge (D-Sub) 1x
DVI-Ausgänge 1x
interne Anschlüsse
USB Anschlüsse intern 2
intern USB-3.0/3.1 (5 GBit/s) 2
Stromversorgung
Mainboardanschlüsse 24-pin (ATX 2.0-Power)  •  8-polig (ATX12V/EPS12V)
weitere Informationen

• 1x M.2-Slot (Key M) für SATA3 6.0 Gb/s oder PCIe-3.0 x4 SSDs
• 1x M.2-Slot (Key E) Vertical für WiFi-802.11ac Module (belegt)
