MSI MEG Z590 UNIFY-X (7D38-006R)

im HardwareSchotte Preisvergleich
    Es sind noch keine Bewertungen oder Testberichte vorhanden.

    • Mainboard
    • Hersteller: MSI
    • CPU-Sockel: Sockel LGA 1200
    • Formfaktor: Mini-ITX
    • Mainboard Chipsatz: Intel Z590
    • extern USB-3.0/3.1/3.2 (5 GBit/s): 8x USB 3.1 Typ-A (Gen.1)
    • extern USB-3.1/3.2 (10 GBit/s): 1x USB 3.1 Typ-A (Gen.2)
    • Grafikkarten Bus-System: PCI Express 4.0

    Alternative Produktvorschlägefür MSI MEG Z590 UNIFY-X (7D38-006R)

    Das Produkt MSI MEG Z590 UNIFY-X (7D38-006R) ist seit dem 28.02.2024 nicht mehr erhältlich.
    Folgende Produkte besitzen ähnliche technische Eigenschaften (), weitere Alternativen findest du in der Kategorie Intel Mainboards.

    GIGABYTE B760I AORUS PRO DDR4

    Intel B760 - Mini-ITX - 2x DDR4-5333MHz - 4x SATA - PCIe-4.0 M.2-Slot - USB 3.0, USB 3.1 - 7.1 Audio - 2,5 GBit/s LAN, WLAN - PCI Express 4.0 - Sockel LGA 1700

    23 Preise
    ab 195,12¤

    MSI PRO B760M-G DDR4 (7D90-001R)

    Intel B760 - Micro-ATX - 2x DDR4-4800MHz - 4x SATA - PCIe-4.0 M.2-Slot - USB 3.0 - 7.1 Audio - 2,5 GBit/s LAN - PCI Express 4.0 - Sockel LGA 1700

    25 Preise
    ab 111,97¤

    ASRock B660M Steel Legend (90-MXBH30-A0UAYZ)

    Intel B660 - Micro-ATX - 4x DDR4-5333MHz - 6x SATA - PCIe-4.0 M.2-Slot - USB 3.0 - 7.1 Audio - 2,5 GBit/s LAN - PCI Express 4.0 - Sockel LGA 1700

    6 Preise
    ab 151,90¤

    ASUS Pro Q570M-C/CSM (90MB1700-M0EAYC)

    Intel Q570 - Micro-ATX - 4x DDR4-3200MHz - 6x SATA - 2x M.2-Slot - USB 3.1 - 7.1 Audio - 1 GBit/s LAN - PCI Express 4.0 - Sockel LGA 1200

    20 Preise
    ab 173,00¤

    MSI MPG B760I EDGE WIFI DDR4 (7D40-001R)

    Intel B760 - Mini-ITX - 2x DDR4-5333MHz - 4x SATA - PCIe-4.0 M.2-Slot - USB 3.0, USB 3.1 - 7.1 Audio - 2,5 GBit/s LAN, WLAN - PCI Express 5.0 - Sockel LGA 1700

    2 Preise
    ab 233,00¤

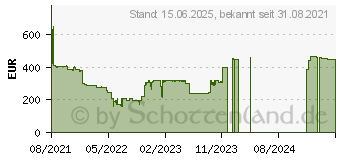

    Preistrend

    Preisüberwachung

    Lass Dich von uns benachrichtigen, wenn das Produkt unter den von Dir angegebenen Preis fällt.

    Preis
    E-Mail(Datenschutz)
    Newsletter

    Produktdatenblatt für Mainboard MSI MEG Z590 UNIFY-X (7D38-006R)

    zu den alternativen Produktvorschlägen
    HerstellerMSI
    Artikelnummer des Herstellers7D38-006R
    Markteinführung 31.08.2021
    Eigenschaften
    CPU-Sockel Sockel LGA 1200
    Mainboard Chipsatz Intel Z590
    für CPU-Generation Core i-11000 (Rocket Lake)  •  Core i-10000 (Comet Lake)
    Formfaktor Mini-ITX
    passive Kühlung Ja
    Speicher
    Speicherbänke 2
    Arbeitsspeicher-Typ DDR4-5600MHz
    Speichererweiterung (maximal) 64 GB
    Erweiterungssteckplätze
    Grafikkarten Bus-System PCI Express 4.0
    PCI Express (x16) Steckplätze 1x (x16 mode)
    PCI Express (x4) Steckplätze 1
    PCI Express (x1) Steckplätze 2
    Multi-GPU Technik -
    Massenspeicher
    SATA-Anschlüsse 6x SATA-III 6Gb/s
    M.2 Anschlüsse 4x
    M.2-/U.2-Ports 2x M.2 Key-M PCIe-4.0 x4  •  1x M.2 Key-M PCIe-3.0 x4/SATA  •  1x M.2 Key-M PCIe-3.0 x4
    Schnittstellen-Protokoll NVMe (NVMHCI)
    Netzwerk
    Netzwerk Schnittstellen (RJ-45) 1x
    Netzwerk-Übertragungsrate 2,5 GBit/s
    Netzwerk-Chipsatz Intel I225-V + Intel Wi-Fi 6E AX210
    WLAN-Standards WiFi 6 MU-MIMO (2x2)  •  WiFi 6 (IEEE 802.11ax bis 1.2 GBit/s)  •  WiFi 5 MU-MIMO (2x2)  •  WiFi 5 (IEEE 802.11ac bis 1 GBit/s)  •  WiFi 4 (IEEE 802.11n bis 300 MBit/s)  •  IEEE 802.11g (bis 54 MBit/s)  •  IEEE 802.11b (11 bis 44 MBit/s)
    Bluetooth Bluetooth 5.2
    Sound
    Audiokanäle 7.1
    Audio-Chipsatz Realtek ALC4080
    analoge Audio-Anschlüsse Line-Out 1x (Klinke)  •  Line-In 1x (Klinke)  •  Mikrofon 1x (Klinke)
    digitale Audio-Anschlüsse (S/PDIF) -
    externe USB-Anschlüsse
    externe USB-2.0/1.1 2x
    extern USB-3.0/3.1/3.2 (5 GBit/s) 8x USB 3.1 Typ-A (Gen.1)
    extern USB-3.1/3.2 (10 GBit/s) 1x USB 3.1 Typ-A (Gen.2)
    extern USB-3.2 Gen2x2 (20 GBit/s) 1x USB 3.2 Gen 2x2 Typ-C
    Thunderbolt-Schnittstelle nicht vorhanden
    externe Video-Anschlüsse
    HDMI-Ausgänge 1x HDMI 2.0
    DisplayPort-Ausgänge -
    interne Anschlüsse
    USB Anschlüsse intern 4
    intern USB-3.0/3.1 (5 GBit/s) 2
    intern USB-3.1/3.2 (10 GBit/s) 1
    Stromversorgung
    Mainboardanschlüsse 24-pin (ATX 2.0-Power)  •  6-polig PCI-E  •  2x 8-polig ATX12V/EPS12V
    CPU MOSFETs Power Stages Design 14 Phasen
    CPU MOSFETs Power Choke 90 A
    weitere Ausstattung Digital-Power-Design  •  Premium Power Choke  •  großer VRM-Kühler mit Heatpipes  •  großer Chipsatz-Kühler  •  Copper PCB  •  M.2-Kühler  •  Steel Armor PCI-Express Slot  •  Integriertes I/O-Shield  •  I/O-Armor  •  Code LED-Anzeige  •  Start-/Reset-Tasten  •  LED-Streifen
    Herstellergarantie 3 Jahre
    WLAN Ja
    Produktseite beim Hersteller
    (besseren Produktlink vorschlagen)
    QuelleHardwareSchotte.de
    Verwandte SeitenSockel LGA 1200 Intel Mainboards, Intel-Mainboard-Preisvergleich
    weitere Informationen

    • Socket LGA1200 für Intel Core-Prozessoren der 11- und 10-Generation
    - 4x M.2 Slots Key-M:
    • 1x M.2 Slot Key-M (M2_1) PCIe 4.0 x4 Mode Abhängig von der CPU (wird bei CPUs der 10.Gen. deaktiviert)
    • 1x M.2 Slot Key-M (M2_2) PCIe 3.0 x4 & SATA Mode vom Z590 Chipsatz
    • 1x M.2 Slot Key-M (M2_3) PCIe 4.0 Mode von der CPU (durch BIOS-Auswahl)
    • 1x M.2 Slot Key-M (M2_4) PCIe 3.0 x4 & SATA Mode vom Z590 Chipsatz
    - Grafik-Ein-/Ausgänge:
    • 1x HDMI 2.0: nur Intel Core 11.Gen unterstützt HDMI 2.0 (max. 4K 4096x2304 @ 60Hz)
    - Weiteres:
    • 1x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
